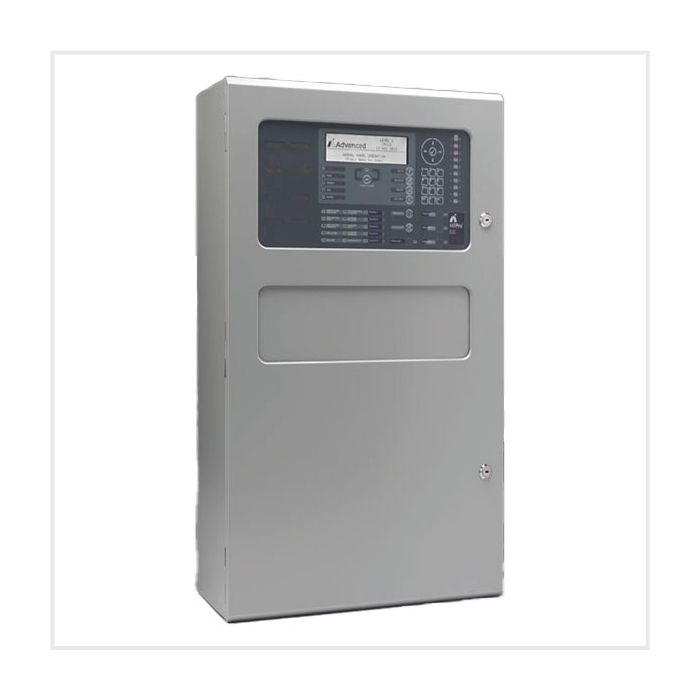

Advanced 2-8 Loop Fire Panel c/w 5 Loop cards. Standard network (Apollo/Hochiki Protocol)
Indicators: 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System)
Controls: Alpha...
- Indicators: 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System)
- Controls: Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable Push Buttons Actual 2
- Mains Supply: 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A max
- Battery Capacity: 2 x 24V 4Ah internal (min), 2 x 24V, 18Ah internal (max), or 1 x 24V 45Ah internal (max) and 1 x 24V 45Ah external (max) using optional battery enclosure
- Construction & Finish: Steel IP30 / RAL7035
- Dimensions (mm): 750 x 450 x 190
Check Lead Times
SKU
MX-5805
Product Details
- The MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 onboard sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes.
- There are also 8 programmable function buttons with LED indication for confirmation of operation.
- The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select & click programming aid for engineer configuration and end-user operation.
- Powerful cause-and-effect programming coupled with dynamic zoning and enhanced Trace Diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems.
- Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT configuration software.
| Manufacturer | Advanced |
|---|---|
| Supply Voltage | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A max |
| Battery | 2 x 24V 4Ah internal (min), 2 x 24V, 18Ah internal (max), or 1 x 24V 45Ah internal (max) and 1 x 24V 45Ah external (max) using optional battery enclosure |
| Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable Push ButtonsActual 2 |
| Constructions | Steel IP30 / RAL7035 |
| Network Panel Type | 2-8 Loop |
| Dimensions | 750 x 450 x 190 mm |
